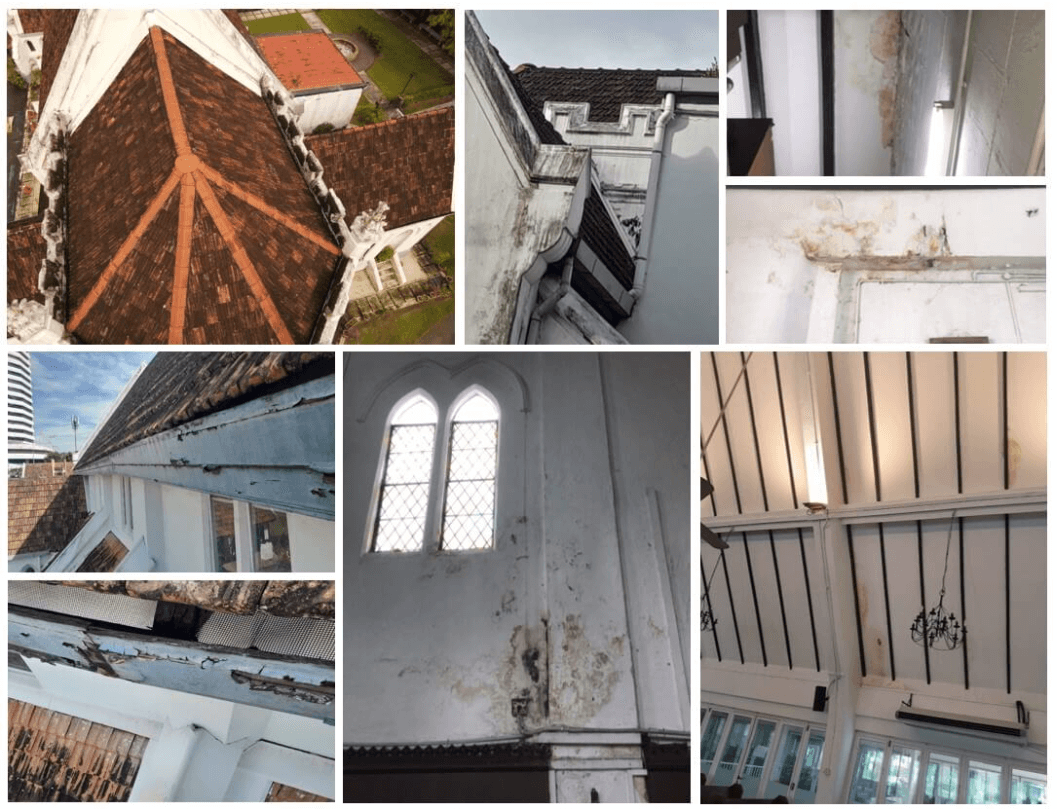

An initial dilapidation survey shows the need for the roof gutters to be replaced, as well as supporting structures and details such as metal flashings, fascia panels, and damaged roof tiles and purlines.

The exterior of the building is also in need of a fresh coat of paint, with repairs to specific areas where the plaster on the facade is damaged, or where algae growth is visible due to moisture within the building's fabric.

Dean's Update

A scissor lift was rented to look in the nave, and inspection was also done of the chancel area. Further damage was found in some of the other trusses. And some of the nuts are old and need to be replaced.

Most of the damage seems to have been caused many years ago by termite activity but the termites are all gone now because we have an active termite baiting and monitoring system in place.

Still, the damaged parts of the timber structure need to be replaced – and this exercise will need great care and expertise and time.

The engineer is now working on “repair design and procedures” – in other words he’s drawing up a plan for how to rectify all this –and it’s complicated by the fact that it is a heritage building.

And once we’ve got that, then we will need to find out how much it will cost to fix and how long it will take to do – bearing in mind that everything we propose to do will need to be vetted and approved by Jabatan Warisan.

All this is being attended to by the Building Board on an urgent basis – and they are doing so under the oversight of the Cathedral Council.

So please do pray for them and for all who are involved. Let me lead us in a prayer together.

Heavenly Father we thank you for giving us this lovely old building in which we can meet in the name of your Son, and from which we can make disciples of all nations. We thank you for all those who have gathered here before, and for all who will come after us. We pray that you would help us as we seek to be good stewards of this resource that you have given us.

We thank you for keeping us safe all this time as we met there, and we thank you that the damage was found pre-emptively rather than following any incident. We are so grateful to you for that.

We do pray for wisdom for all who are involved in this project. We pray that the right decisions will be made each step of the way, for the good of your people who meet there. We pray that you will provide whatever resources that we need to get all this fixed. And we pray that even as we do this, we will continue trust your sovereignty and will not be distracted from our primary ministry focus.

So we pray that you will continue to look after us as your people, and that you would continue to sustain us in every was, as we seek to glorify you, in response to your grace, by making disciples of your Son.

We ask this in his name. Amen.

Over the last couple of months, the work progress has mainly been for the purposes of uncovering the extent of the damage in the roof trusses before we are able to carry out any physical repair works. With the completion of staging and scaffolding, the engineers have been able to carry out detailed investigations.

At the same time, we have also been waiting on the necessary approvals from Jabatan Warisan Negara (JWN) before we are able to physically start work. These include the submission of a Dilapidation Report, a Kebenaran Merancang approval, as well as approval of various Method Statements that outline the works to be carried out.

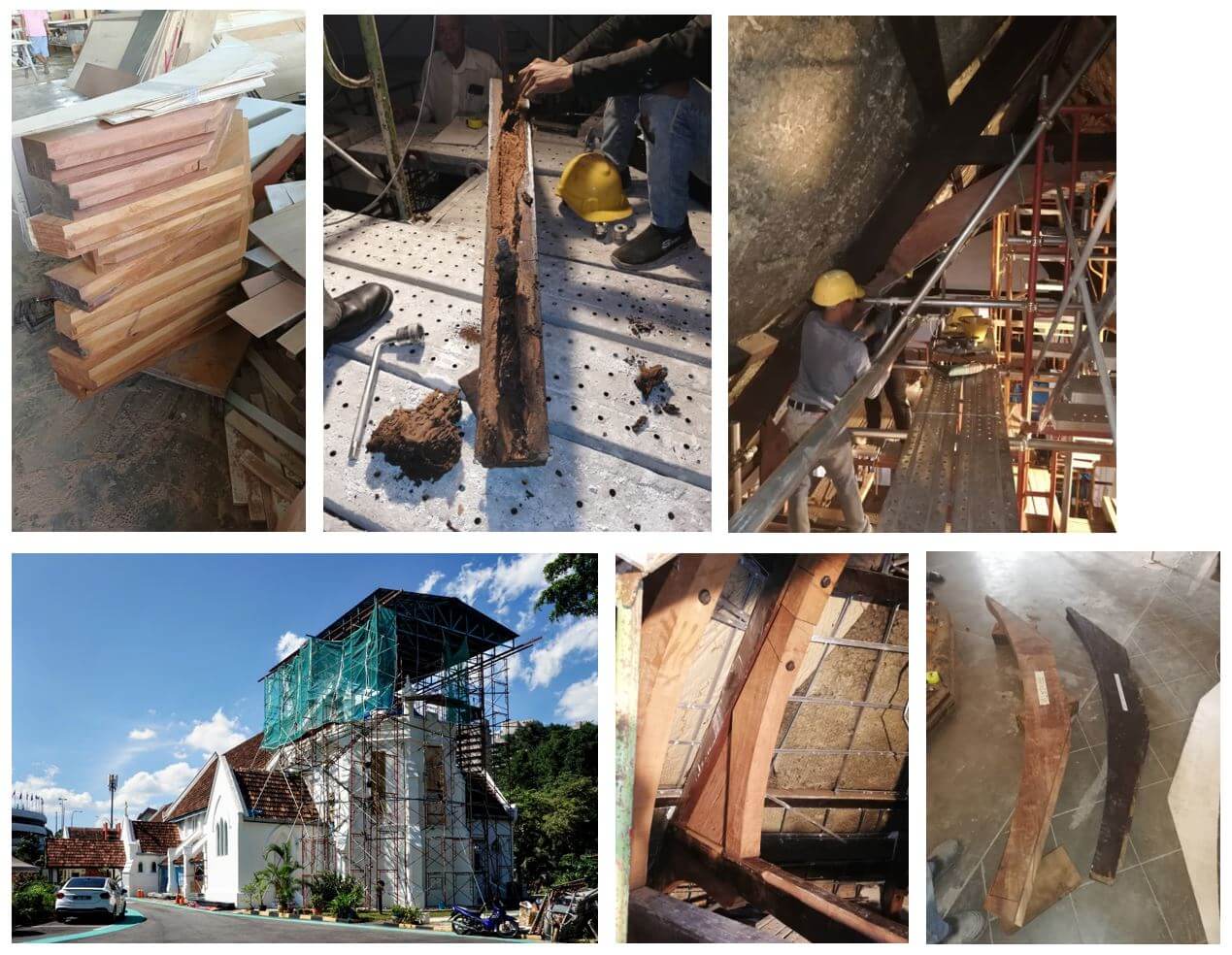

Detailed studies and structural simulations have helped us to understand the best way to repair the trusses. Instead of dismantling the entire truss as previously assumed, there is now an alternative way to brace and prop the trusses internally while the repairs are carried out. Damaged sections of the trusses can be safely removed and replaced with new timber sections when the structural loading of the truss is secured by the necessary braces. In addition, lab test results have revealed the brittleness of the existing metal bolts. This has led to a further expansion of the scope of works to include the replacement of all bolts in the trusses.

At the same time, we have been sourcing for reclaimed wood of similar specifications to the existing trusses, in order to replace the damaged wood in accordance to the conservation principle of "like-for-like". FRIM tests have confirmed that the timber species of the trusses is Grade A "Merbau".

Furthermore, due to the complexity of the works involved in the repair of the trusses, compounded by the need for an understanding of traditional joinery detailing, a specialised roofing contractor was required to be able to do the job. After assessing various candidates and some negotiations, a contractor has been identified and is in the process of being finalised.

Works had been steadily carried out over the past few months. The contractor, under the supervision of the engineer, had methodically replaced the rotten pieces of timber in the roof structure. When the existing aluminium ceiling was removed, some further pieces of purlins were found to be damaged and had to be replaced as well, along with the other pieces in the roof trusses.

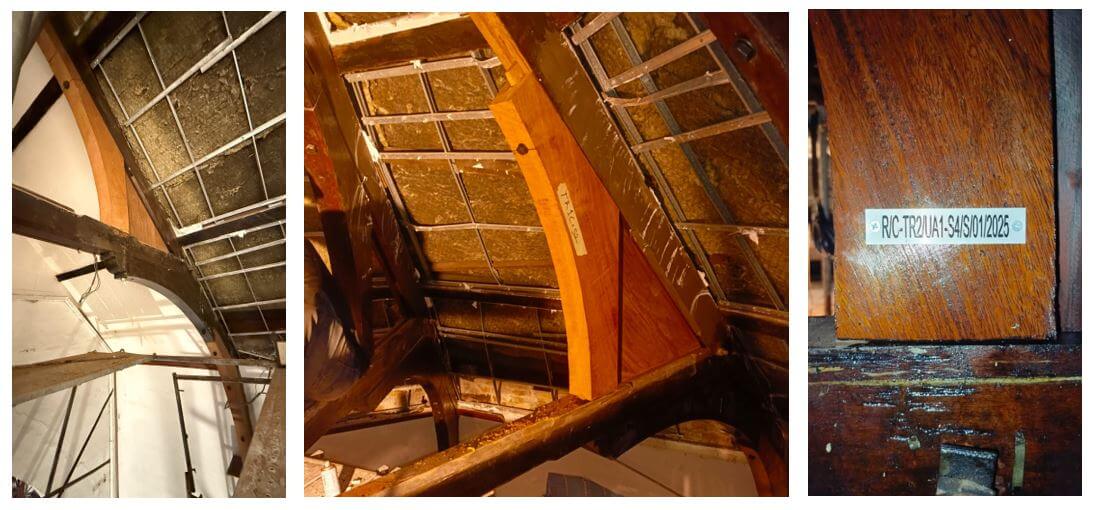

In accordance with conservation principles, every new timber piece is tagged with a code that identifies its location and date of installation. This list is then compiled into a report for future reference and authentication of the original pieces that are still intact.

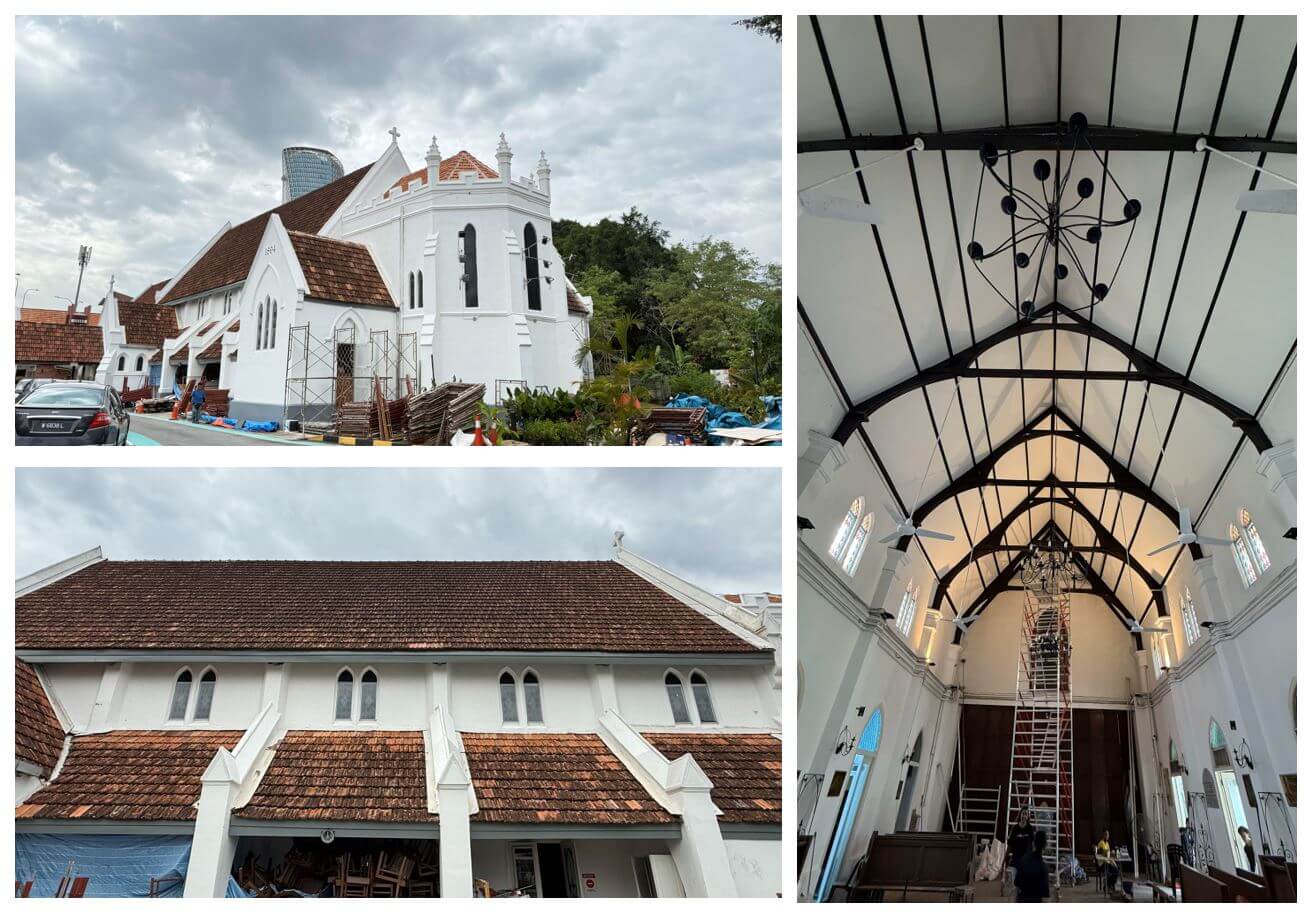

A flurry of works have been underway to reconnect all building services for the reopening of the cathedral. These include the air-conditioning, lighting, AV, and security systems, not to mention a thorough cleaning of the building interiors and furniture.

A Thanksgiving Service for the Cathedral Restoration will be held on Saturday, 5 April at 4pm. This will be in conjunction with the Cathedral's 130th anniversary.
